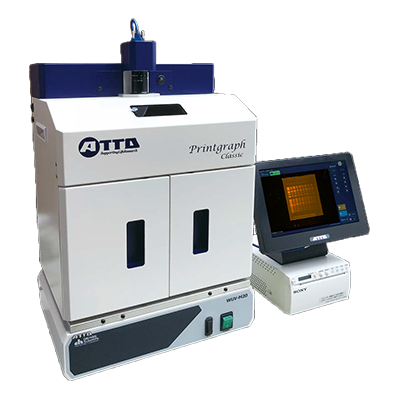

WSE-5400-U Printgraph Classic
(0 review)

Includes: Main unit, Control, UV

12904,64 лв 12904.64 BGN 12904,64 лв VAT Excluded

6584,00 € VAT Excluded

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Purpose and Application

    • UV light: Capture EtBr stained gel, SYBR Green/Safe stained gel image
    • White LED plate light source: CBB stained gel, silver-stained gel etc. (optional)
    • Cyan LED light source: Capture several stained gel image (optional)
    • Color mode/Monochrome mode selectable
    • Immediately captured image print out
    • Captured image save to USB memory


    • Color CMOS camera
    • Resolution: 2048 x 1536
    • Gel View window
    • Quick ready to use
    • Simple operation for printing out (optional)


    WSE-5400 Printgraph Classic
    CameraHigh resolution color CMOS
    Resolution2048 x 1536
    LensF1.4 12 mm Fixed focal lens
    Zoom1x ~ 8x 0.2x step / 1x step adjustable
    Control10 inch touch LCD panel or PC software control
    FilterOrange filter (50 mm)
    View area25 (W) x 18 (D) mm ~ 200 (W) x 150 (D) mm
    File format16 bit TIFF, 8 bit TIFF, BMP, JPEG
    Exposure time1 msec ~ 10 sec
    SaturationWhite level
    Dimension340 (W) x 275 (D) x 437 (H) mm (only dark room)
    Weight9.0 kg (only dark room)
    PowerAC100V-240V 2A 50/60Hz (AC adapter)

    Ordering Information

    Code No.DescriptionUnit
    2305420WSE-5400-S Printgraph Classic (Main unit)1 set
    3532197WUV-M20 UV light box (312 nm)1 set
    2305425PC connection kit for WSE-54001 set
    2140202SONY Thermal printer UP-X898MD1 set
    2140913Printer paper UP-110HG, 10 rolls1 pk
    2008151WSE-5600 CyanoView (Cyan LED) unit1 set
    2196160Flat Viewer (White LED light source)1 set
    2305423Extension AC adapter for WSE-54001 ea
